3D Puff Hat Design Bird Nesting Resolved by Slowing Down Machine Speed

The client noticed:

bird nesting within the first 400 stitches
thread bunching during the beginning of the design
repeated failures across three embroidery machines
difficulty stitching the puff sections cleanly

To rule out the main design, a simpler puff “T” logo was also tested. Even though that design already had a successful sew-out before, it still struggled during stitching on the client’s setup.

Because both the detailed design and the simpler test logo were having problems, the issue first became very frustrating and difficult to trace.

After reviewing the stitch-outs and discussing the setup, the embroidery file itself did not appear to be the main issue.

The simple puff “T” logo had already stitched successfully before, which clearly showed:

the puff settings were working
the digitizing itself was correct
the embroidery file structure was stable

Since even the simpler puff test design struggled on the client’s machines, the issue pointed more toward:

machine speed
foam resistance
thread feeding
tension during puff stitching

3D puff embroidery is much more sensitive than regular flat embroidery because the needle has to stitch through foam while forming heavy satin stitches at the same time.

• Reviewed the failed stitch-outs shared by the client
• Compared the detailed puff logo with the simpler “T” puff test logo
• Confirmed the simpler logo had stitched successfully before
• Discussed how puff embroidery reacts at higher speeds
• Recommended slowing the machine speed down significantly
• Helped troubleshoot the stitching process step by ste

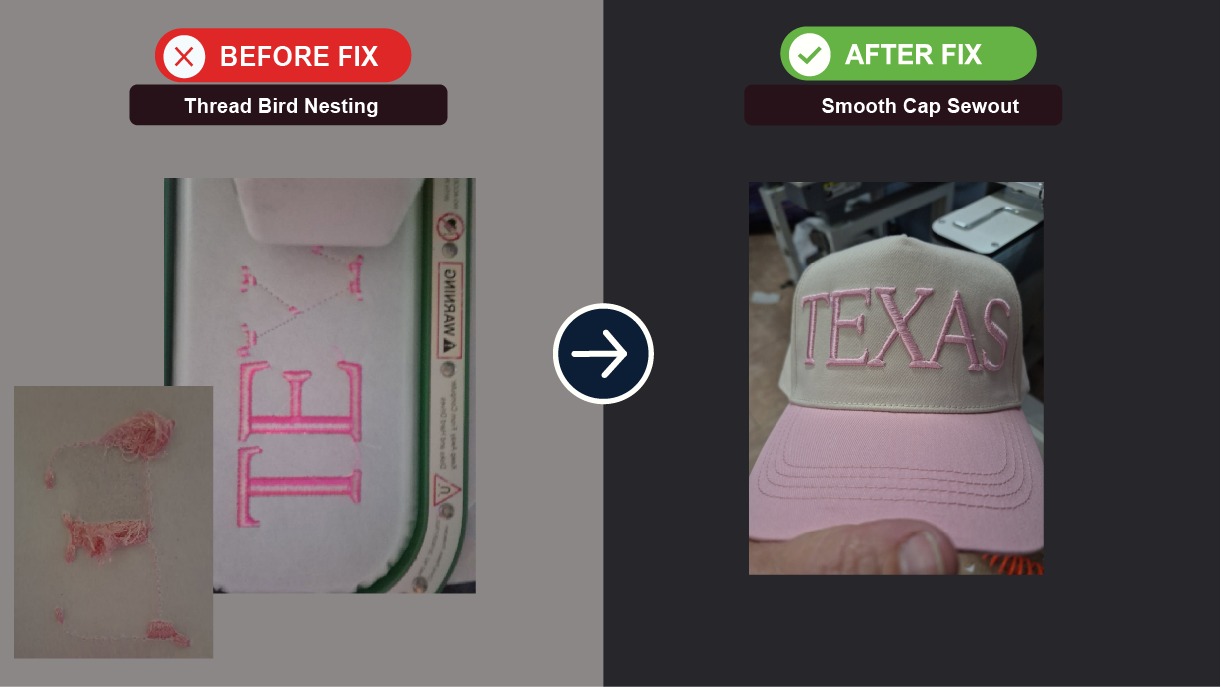

After slowing the machine speed down further, the client was finally able to complete the cap successfully.

Since both the detailed logo and the previously tested “T” logo struggled at normal speed, this confirmed the issue was mainly related to how the machines were handling the puff embroidery process rather than a problem with the embroidery files themselves.

Once the machine stitched more slowly:

thread feeding became smoother
the needle handled the foam better
tension became more stable
the satin stitches formed properly over the puff foam

3D puff embroidery often requires slower speeds because the machine is pushing through extra foam thickness and heavier stitch buildup compared to standard embroidery.
